Favero
Assioma DUO-SHI Power Meter Pedal
- Specifications
- Warranty instructions
| Power measurement | Dual-side | |||
|---|---|---|---|---|
| Cleats specifications | SPD-SL | |||
| Cadence sensor | included, inbuilt | |||
| Gyroscope | included, inbuilt | |||
| Power computing system | IAV (based on instantaneous angular velocity) | |||
| Oval-chainring compatible | Yes | |||
| Total weight per pedal | 157,0g (including battery) (weight of Assioma DUO-Shi + PD-R8000 pedal body) | |||
| Battery Type | Rechargeable lithium battery | |||
| Battery life | Fully charged for at least 50 hours | |||
| radio communications | Bluetooth v4.0, ANT+ | |||
| Accuracy power measurement | ±1% | |||
| temperature compensation | -10°C / +60°C | |||
| Waterproof level | IP67 | |||

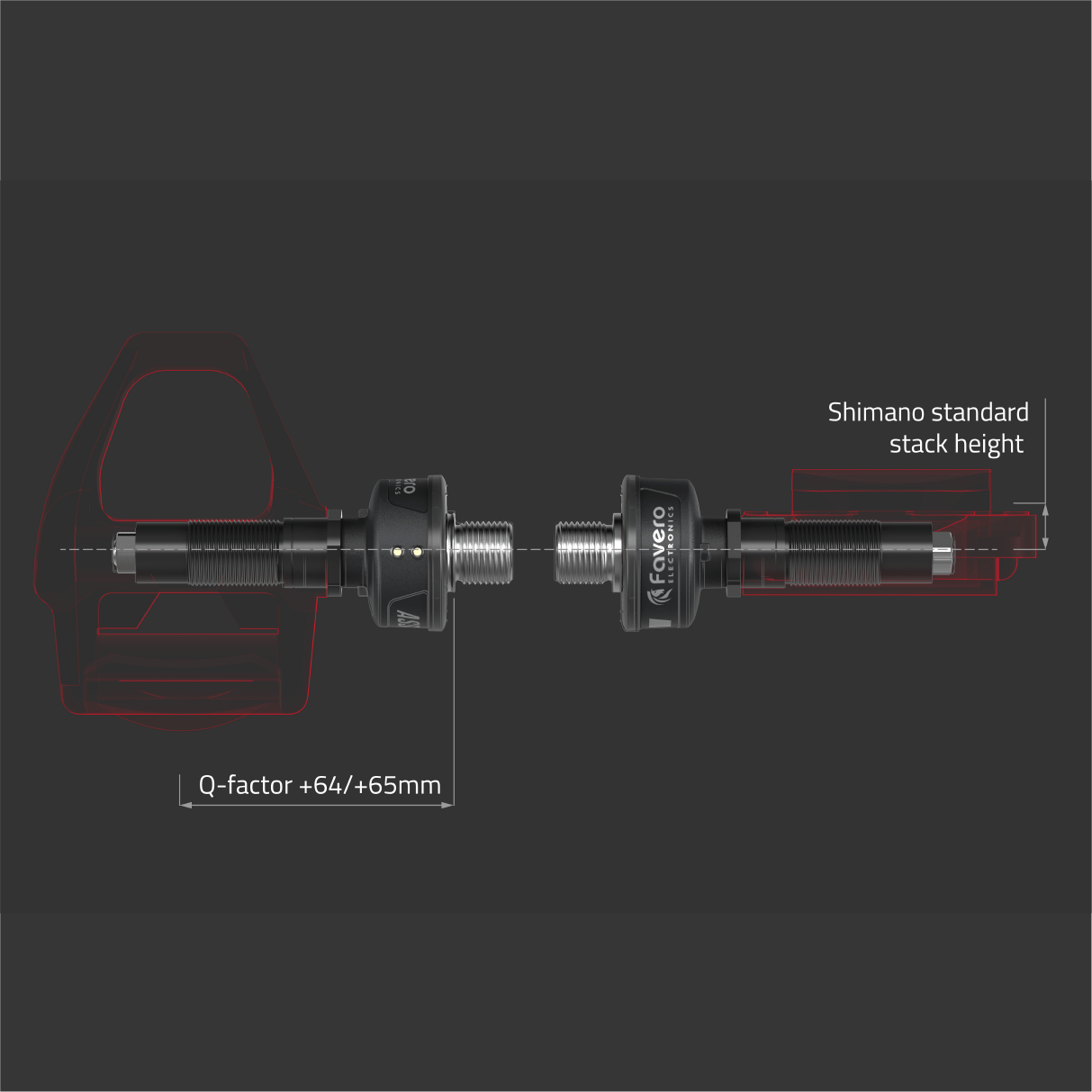

| Q-factor | • PD-R7000/R550/R540: +64 mm • PD-R8000/6800: +65 mm |
|||
| Compatible pedal body | PD-R8000, PD-R7000, PD-6800, PD-R550 and PD-R540 | |||
| Warranty period | 2 years | |||
| NCC inspection qualification label format | CCAL21LP1371T4 | |||
| Packaging contents | • Left power sensor with adapter for Shimano® pedal body • Right power sensor, comes with adapter battery charger for Shimano® pedal body, including plugs (EU, US, UK, Australia), 2 micro-USB/USB cables two meters long, included 2 magnetic connectors, hex key and 4 washers for installation, user manual |
|||
In accordance with the provisions of Directive 99/44/EC and the relevant Italian transposition legislation, all goods sold by FAVERO within the European Community are covered by a legal guarantee of 24 (twenty-four) months from the date of delivery.
Goods sold by FAVERO outside the European Community are covered by a 24-month warranty from the date of delivery under the same terms.
Warranty conditions
Warranty does not include:
1. Use parts that experience normal wear and tear, such as wires and cables, connectors, moving mechanical parts and exterior surfaces.
2. Damage caused by carelessness, neglect, any use or installation not in accordance with the instructions provided, and any unauthorized tampering or modification.
3. Damage caused by external reasons: accidents, liquid penetration, fire, lightning strikes or voltage surges caused by other sources, etc.
Warranty use
In order for the warranty to be valid, the customer must:
If any nonconformity or defect is found in the goods, notify the purchasing dealer immediately.
After-sales service
Every product we sell comes with integral installation instructions and usage instructions (also available on this website).
If you encounter difficulty in use or malfunction, you can first ask the place of purchase or dealer and describe it in detail to seek free support or assistance.
If the problem persists, the dealer will send the product to our company.
Our company will seek support from the FAVERO Italian original factory in accordance with standard procedures.
Goods sold by FAVERO outside the European Community are covered by a 24-month warranty from the date of delivery under the same terms.
Warranty conditions
Warranty does not include:
1. Use parts that experience normal wear and tear, such as wires and cables, connectors, moving mechanical parts and exterior surfaces.
2. Damage caused by carelessness, neglect, any use or installation not in accordance with the instructions provided, and any unauthorized tampering or modification.
3. Damage caused by external reasons: accidents, liquid penetration, fire, lightning strikes or voltage surges caused by other sources, etc.
Warranty use
In order for the warranty to be valid, the customer must:
If any nonconformity or defect is found in the goods, notify the purchasing dealer immediately.
After-sales service
Every product we sell comes with integral installation instructions and usage instructions (also available on this website).
If you encounter difficulty in use or malfunction, you can first ask the place of purchase or dealer and describe it in detail to seek free support or assistance.
If the problem persists, the dealer will send the product to our company.
Our company will seek support from the FAVERO Italian original factory in accordance with standard procedures.
